Vertical Lifts



Lakeside Lift standard build will enable this lift to operate in as shallow water as your boat can propel itself with full cradle travel. The Lakeside Lift standard build can accomodate up to nominally 4' water depth (depending on lake bottom surface). Additional leg extensions are available up to 13' water depth.

Comes standard with the ski bunk application, but can be adapted for pontoons, tritoons, etc at any time.

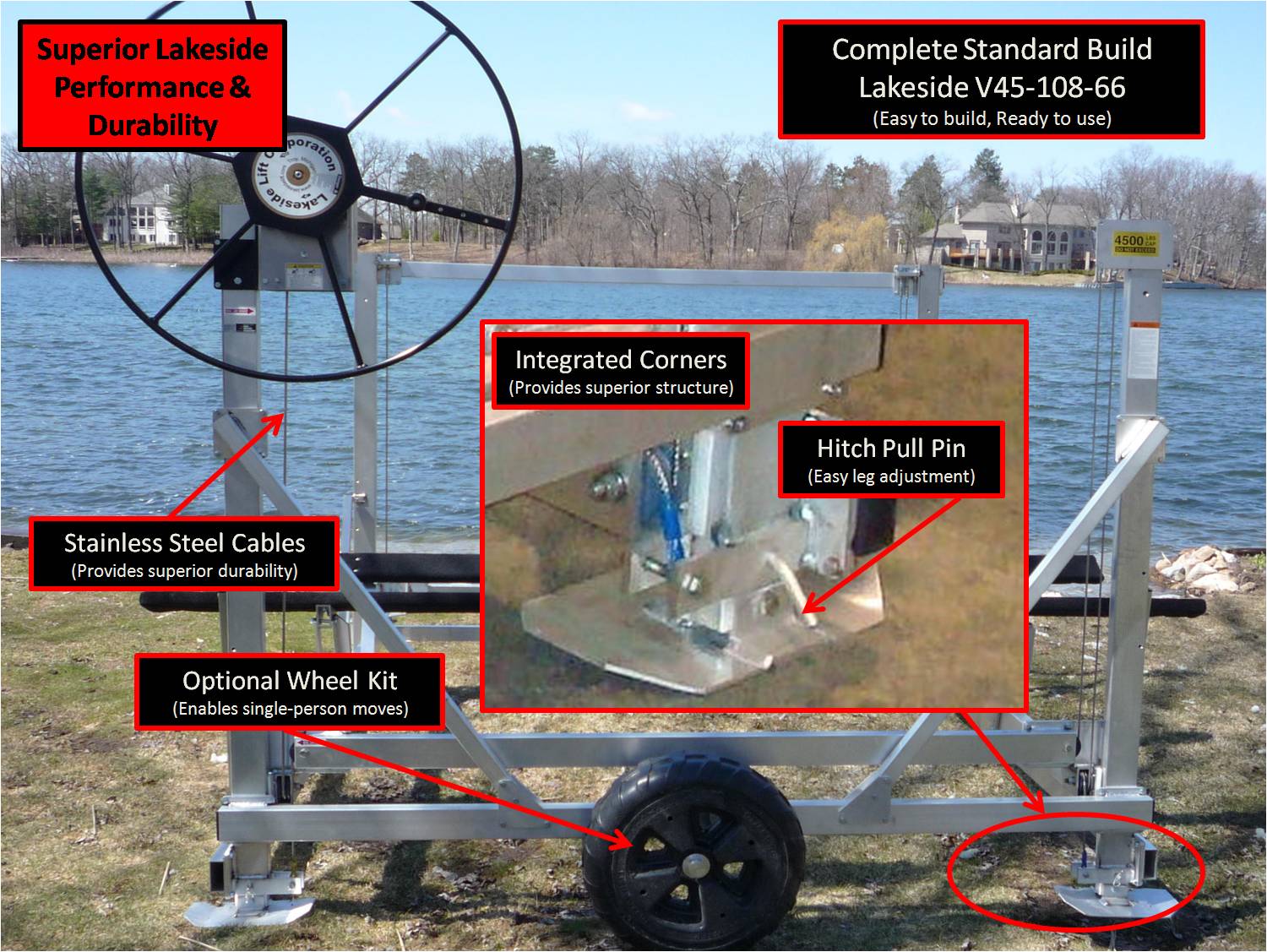

Features

  • 15-year structural warranty (industry-leading) on aluminium materials/workmanship for fresh water applications
  • 2-year mechanical warranty
  • Easily assembled with basic hand tools
  • Hitch pin replaces a bolt for leg adjustment
  • 1-inch hole spacing on leg extensions for the perfect installation
  • Stainless steel performance fasteners at all pulley interfaces (upgrade option of stainless steel hardware kit)
  • No maintenance nylatron pulleys extend cable life
  • 12' extra-long bunks
  • Stainless steel aircraft cable for lifting
  • Light-weight marine grade aluminum construction
  • Standard leg extensions for 3-4 deep water without compromising overall lift height

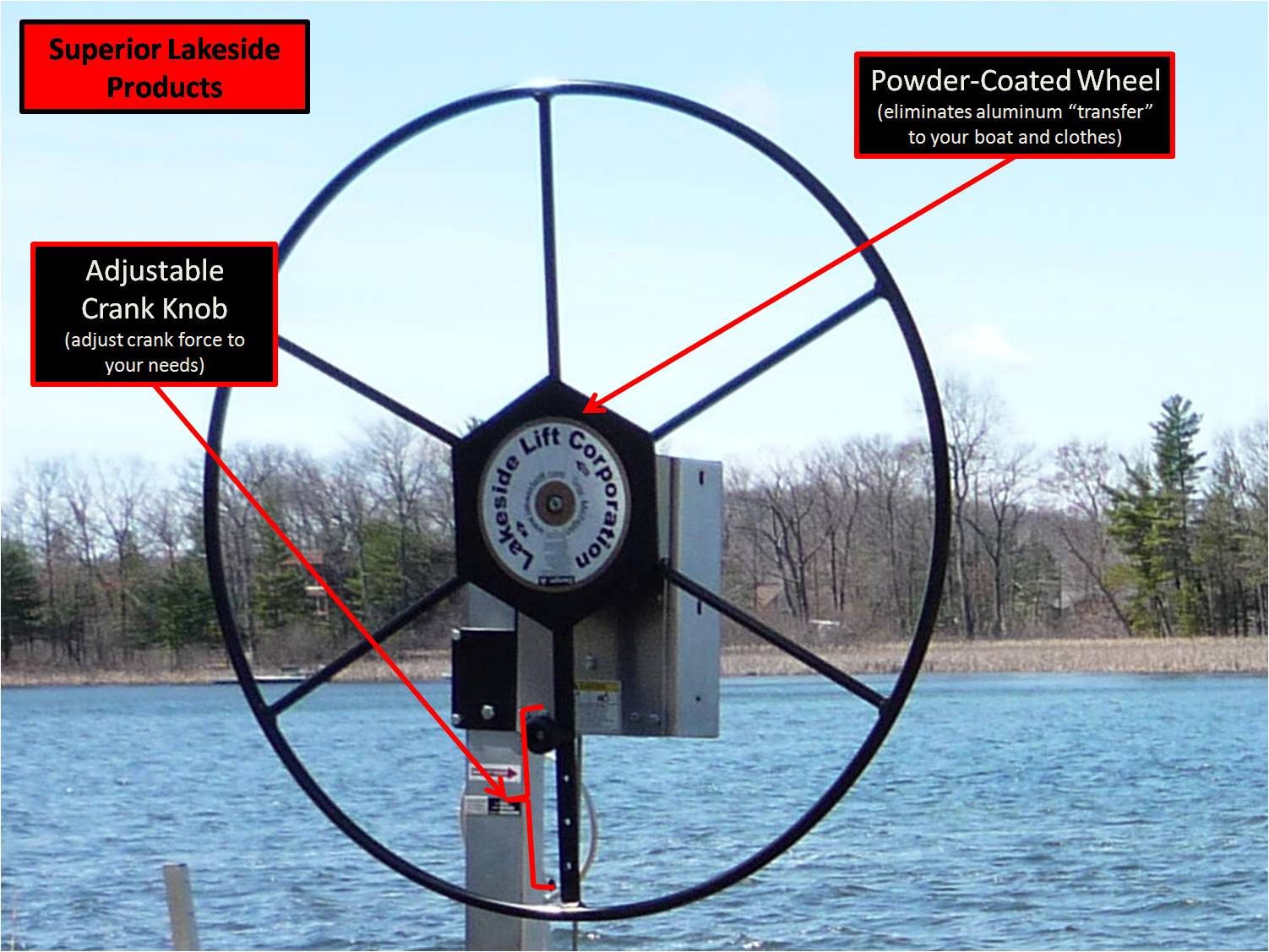

  • Powder-coated crank wheel and adjustable knob
  • Canopies in various lengths (21ft to 30ft) and 18 standard (vinyl) colors
  • Host of complementing accessories
  • V30 and V45-series lifts have 66 inches of vertical travel - great for fluctuating water levels

Lakeside Lift Model # Cable Reeving Appx. Shipping Weight Weight Capacity (Pounds) Overall Beam (Inches) Overall Width (Inches) Overall Length (Inches) Lifting Height (Inches) Min. Platform Height (Inches)
V30-108-66 Single 390 3000 108 116 108 66 8
V45-108-66 Single 435 4500 108 116 116 66 8
V45-108-78 Single 435 4500 108 116 116 78 8
V45-116-66* Single 450 4500 116 124 116 66 8
V55-116-66* Double 581 5500 116 124 116 66 9
V70-124-78 Double 846 7000 124 133 138 78 11

*Also available in a 78” lift height
